Zmodell ZM-LP-01W - Park Light Era III-VI

Zmodell ZM-LP-01W - Park Light Era III-VI

Finely detailed true-to-scale model of the park light is made of precisely processed stainless steel parts airbrushed with black lacquer paint, acrylic and 3D printed elements. The light is equipped with 3200K warm white type 0402 LED.

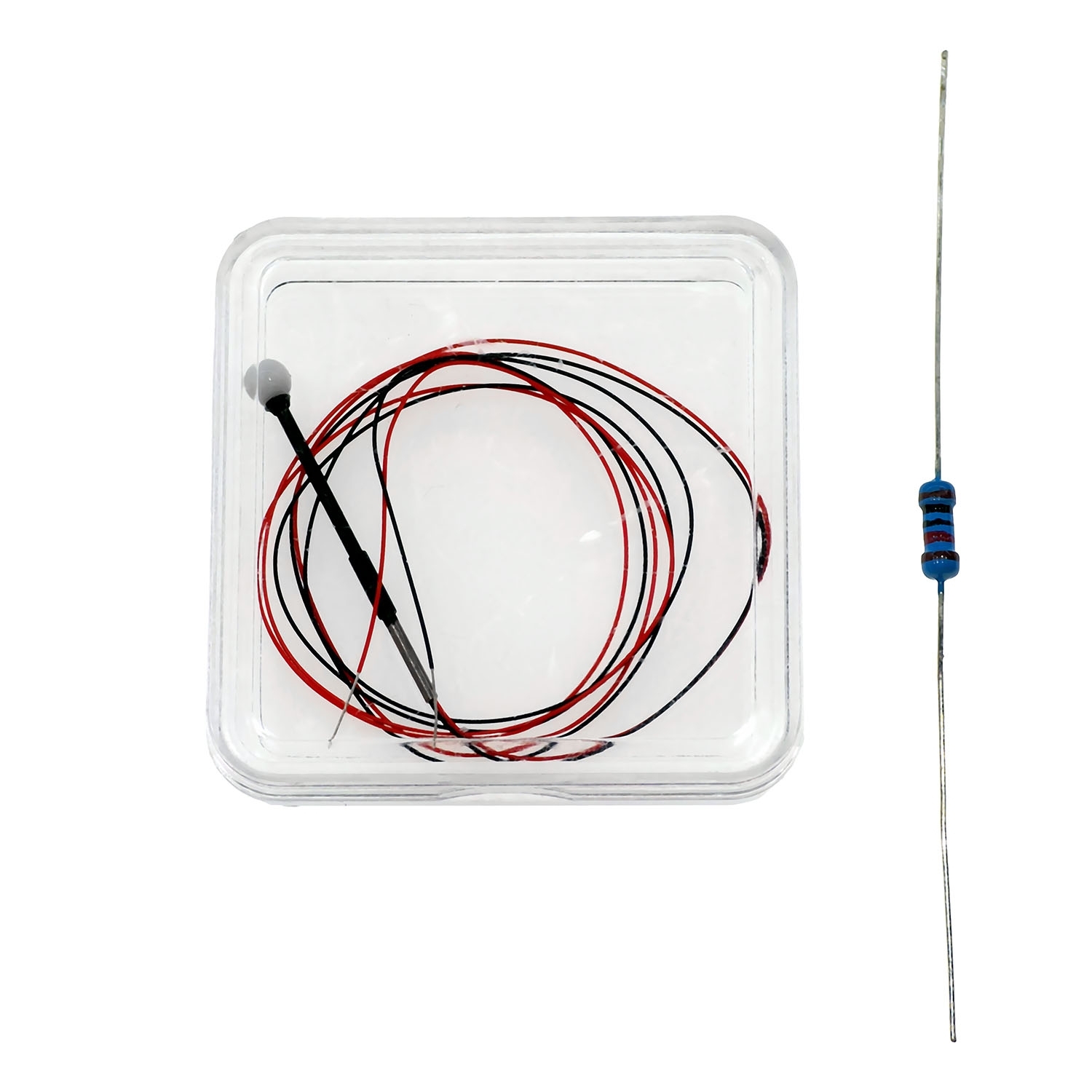

Quantity: 1x Park light, 1x 10 kΩ current-limiting resistor

Scale: Z scale 1:220

Era: III-VI

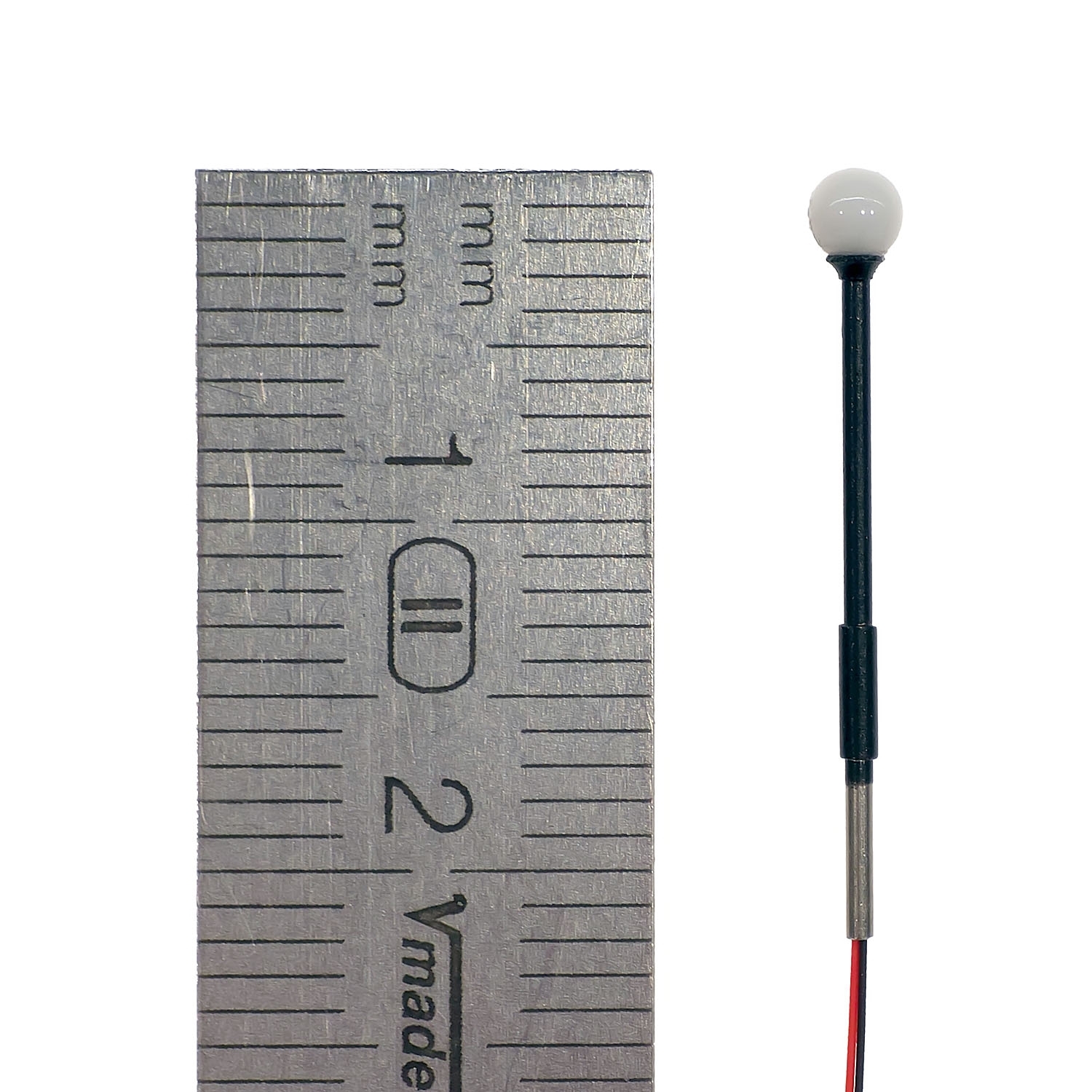

Size: 17 x 2.5 mm (Height above the surface level x Diameter)

Power: 8-16V DC (12V DC recommended)

Power consumption: 1 mA @ 12V DC

Cable length: 280 mm

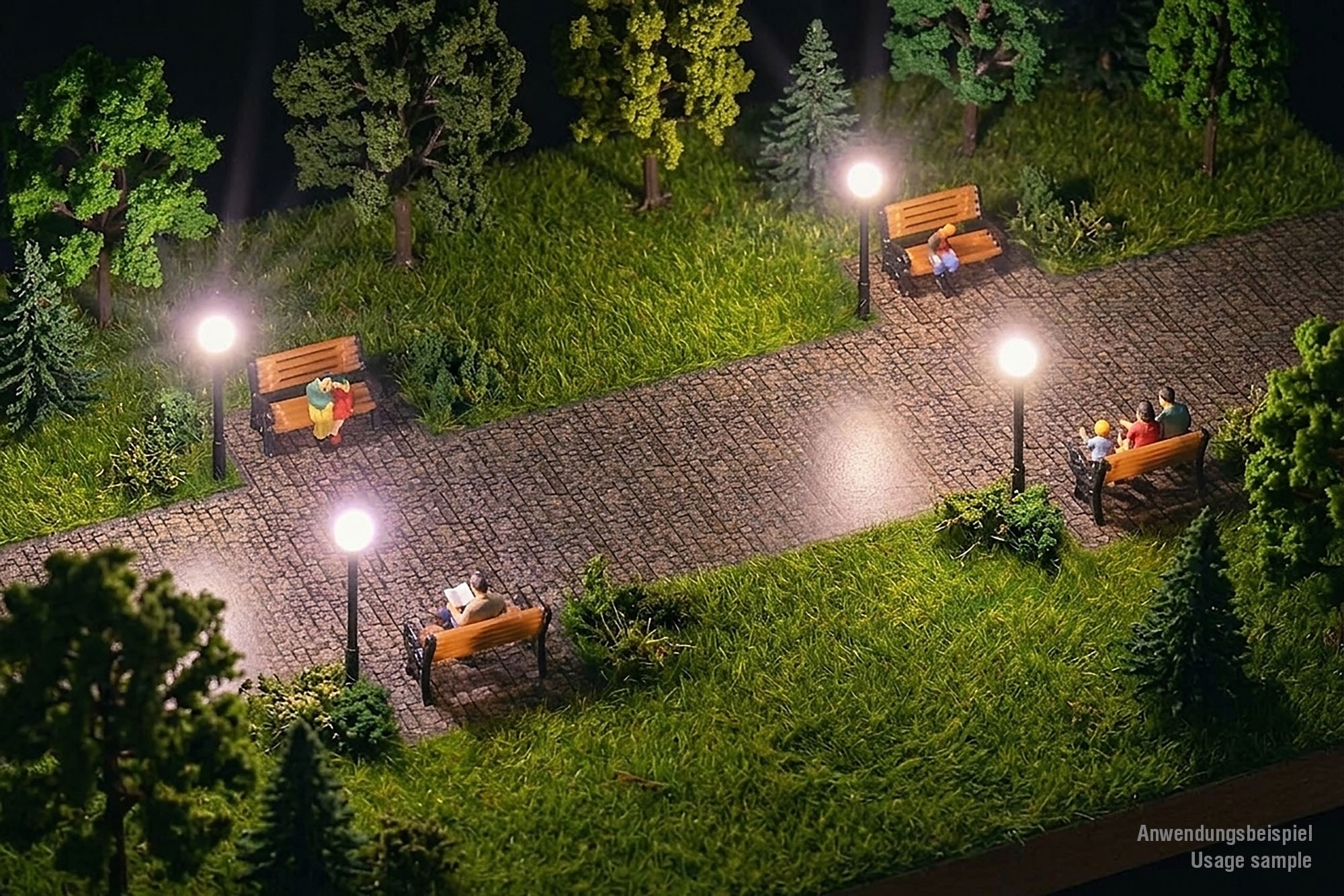

Suitable for: Z scale 1:220 buildings, layouts and dioramas

Important Information

Please observe polarity and connect the light only to the stabilized voltage power supply. Never connect the light directly to the power supply - it will destroy the LED immediately and void the warranty! Always use current-limiting resistor!

Do not connect the light to AC power source or to the track output (analog or digital). When using 10 kΩ current-limiting resistor that comes in the package, do not exceed maximum allowed operating voltage. In case of higher power supply voltage (for example, 16-24V DC), resistor with higher value is needed (20-22 kΩ).

A useful tool for calculating resistor values for LEDs is available here:

https://ledcalculator.net

In case of using special power source for LEDs, please refer to the user manual of such a device to determine the value of the current-limiting resistor and other connection parameters.

Warnhinweis nach EU-Spielzeugrichtlinie 2009/48/EG:

ACHTUNG: Nicht geeignet für Kinder unter 14 Jahren.
Verletzungsgefahr und Erstickungsrisiko, wegen funktionsbedingter scharfer Ecken und Kanten, verschluckbarer Kleinteile.

Verantwortlich im Sinne der Produktsicherheitsverordnung (GPSR) ist:

HRT Informationstechnik GmbH, Kasseler Straße 7, DE-34431 Marsberg, Telefon: 0049 (0) 2994 / 9889 -60, E-Mail: info@hrt.de, Web: www.hrt.de
